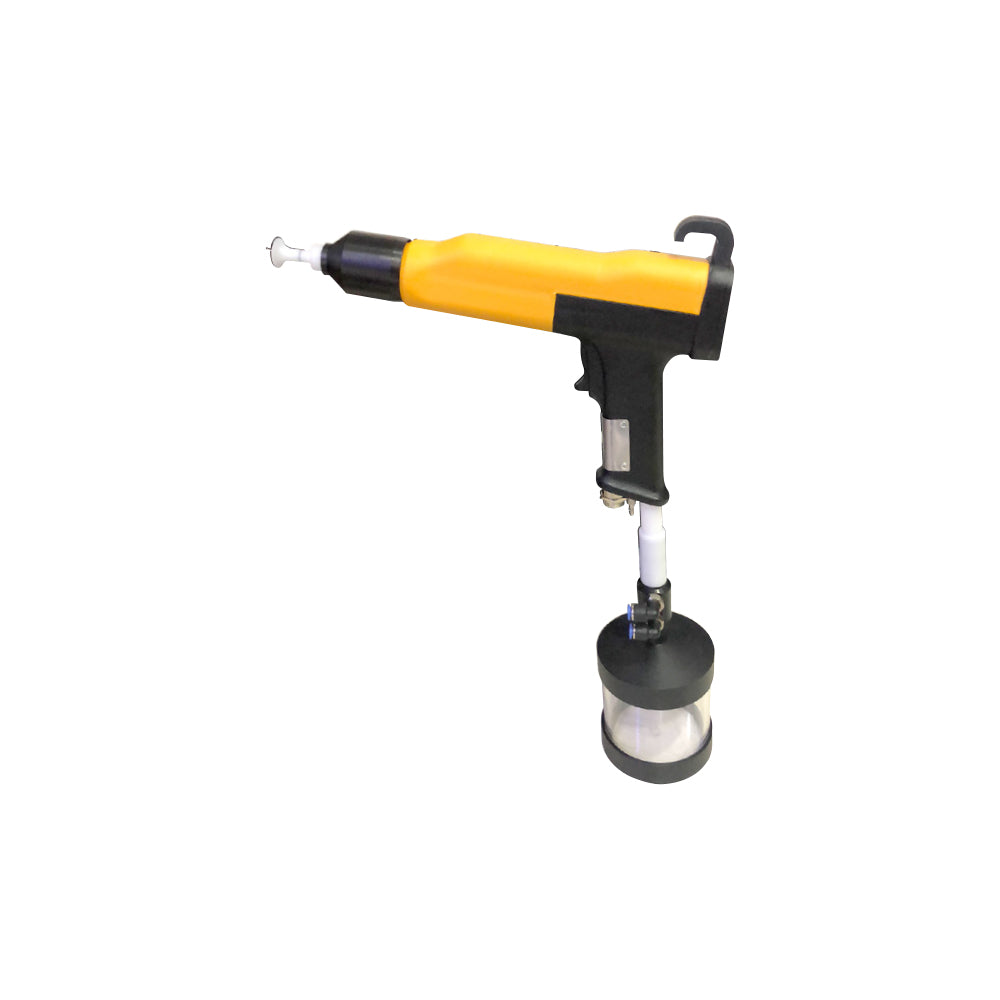

LaboJet Gun

The Labojet laboratory-type electrostatic powder coating gun is compatible with the vast majority of domestic paint equipment.

This paint tank has a capacity of 1 liter; a 2.5 liter tank can be purchased separately if desired.

By removing the paint tank and attaching the hose holder, it can be used in continuous painting applications by connecting the paint hose with compatible devices. Removing the paint tank is very simple and easy. The single system is compatible with both laboratory and manual use.

The power supply is not included with the product. You can operate it by connecting it to the power supply of your existing device.

For purchasing as a set, please refer to the model with the power unit.

LABOJET PISTOL SET CONTENTS:

Micron Manual Powder Coating Gun

Micron Labojet Paint Storage

5 MT. Voltage Cable

5 MT. Main Air Pneumatic Hose

5 MT. Auxiliary Air Pneumatic Hose

5 MT. Vortex Air Pneumatic Hose

Hose holder for paint hose.

Flat nozzle

LABOJET PISTOL TECHNICAL SPECIFICATIONS:

Nominal Input Voltage: 12 V

Nominal Output Voltage: 100 kV

Frequency: 18 kHz

Polarity: Negative

Maximum Output Current: 100 µA

Length: 320mm

Weight: 490g

Protection Class: IP54
